Arrowquip Mobile Cattle Handling System
In the yard or in the field, Arrowquip’s Arrowlock mobile cattle handling systems get the job done.
Arrowquip’s range of mobile cattle handling systems elevates the safety and efficiency of working cattle no matter the location. Mobile cattle handling systems are ideal for farms needing to work across multiple sites and easily integrate into a permanent cattle handling system.
All of the manual Arrowquip mobile systems feature the Arrowlock 3E Head Gate and Easy Flow race sections and come with fold out tub options.
An adaptable width race simplifies the handling of cattle of any size, while the fold-out sweep pen, if selected, aids in guiding the cattle into the system. With weighing capabilities, 5-year warranties, and a variety of other customizable features, there's an Arrowquip Mobile System suited to your farm's needs.
Arrowlock 758 Mobile Cattle Handling System – 75 Series Crush and 8’ Adjustable Race
Integration of the Arrowlock 75 Series manual cattle squeeze crush with an Easy Flow adjustable race
Arrowlock 75 Series crush with 3E Head Gate and parallel squeeze to secure any size of stock
Ability to operate the head gate from anywhere alongside the cattle crush

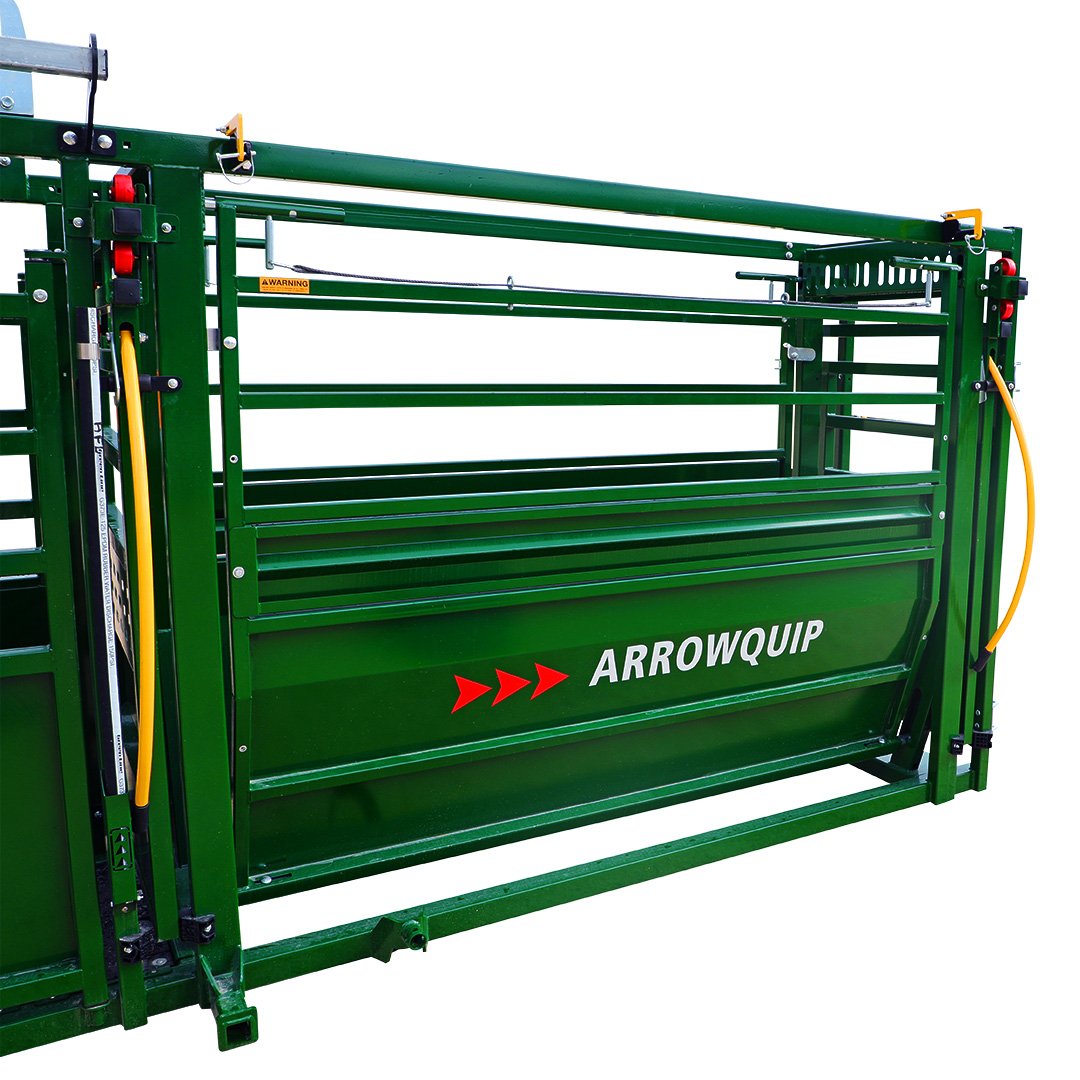

Easy Flow 8’ (2.4m) adjustable race (533-800mm) with sliding door
Manual jacks with hydraulic option
5-year warranty on unit
Lifetime warranty on rubber floor, squeeze locks and rump fingers
Model: 758
Weight: 1,339kg
Dimensions: 1,600mm Wide x 2,514mm x 2,844mm Long
Towing Dimensions: 2,032mm Wide x 2,692mm High x 6,985mm Long
Arrowlock 7508 Mobile Cattle Handling System – 75 Series Crush and 8’ Adjustable Race and Foldable Forcing Pen
Integration of the Arrowlock 75 Series manual cattle squeeze crush with an Easy Flow adjustable race and half round sweep pen
Arrowlock 75 Series crush featuring a 3E Head Gate and parallel squeeze mechanism for securing stock of any size
Head gate operable from any position alongside the cattle crush
Easy Flow 8’ (2.4m) adjustable race (533-800mm) with sliding door for seamless cattle movement
Manual jacks with hydraulic option for versatile operation
5-year warranty included with the unit
Lifetime warranty on rubber floor, squeeze locks and rump fingers
Model: BudFlow Tub
Weight: 2,068kg
Dimensions: 4572mm Wide x 2,514mm High x 10,972mm Long
Towing Dimensions: 2,057mm Wide x 2,692mm High x 9,372 Long
Model: Crowding Tub
Weight: 1,901kg
Dimensions: 2,616mm Wide x 2,514mm x 10,972mm Long
Towing Dimensions: 2,057mm Wide x 2,692mm High x 9,372 Long
Integrating the Arrowlock 75 Series Manual Squeeze Cattle Crush
The Arrowlock 75 Series sits midway in Arrowquip’s range of manual squeeze cattle crushes.
Engineered in Canada with American made steel, this crush is up to any job at hand.
Arrowlock ratchet locking head gate
3E head gate with slats to allow light through
Full side access gates
Top and bottom access gates
TB/needle point access
Textured rubber floor
Rolling back door
