‘4.5m Mega’ Porta-Yards by Landquip NZ



The 4.5m Mega Porta-Yards is the largest available unit from Landquip NZ - with a maximum carrying capacity of 36 no. 7’ (2.1m) aluminium hurdles - that’s a total of 252’ of fenceline.

The 4.5m Mega yard can hold up to 750 ewes and lambs.

  • Tapered V Race with drafting capability

  • Hydraulic lift and lower

  • Hydraulic suspension

  • Rubber floor

  • 1.0m high alloy hurdles with a solid top section to protect dog’s legs while acting as a psychological barrier for sheep

  • Optional single or double lane dosing race

Please note: the 4.5m Mega Yard can only be legally towed on UK roads with a tractor.

Both units are built on the same trailer, capacity on the 550 head unit can be increased to 750 at a later date

750 Head Capacity Mobile Sheep Yard

4.5m Porta-Yards Trailer

  • 36 no. 2.1m yard panels

  • 16’ (4.8m) single lane dosing race with solid sides and end swing gate

  • 2.1m Swing/Forcing Gate

  • 6 no. L Braces

  • 3 no. 3 way joiners

Optional double dosing race

550 Head Capacity Mobile Sheep Yard

4.5m Porta-Yards Trailer

  • 28 no. 2.1m yard panels

  • 16’ (4.8m) single lane dosing race with solid sides and end swing gate

  • 2.1m swing gate

  • 4 no. L-Braces

  • 3 no. 3 way joiners

Optional double dosing race

Further details…

Aluminium Yard Panels

Unit shown: 3.0m Porta-Yards

All Porta-Yards panels are 1.0m high as standard with a sheeted top section, this helps:

  • Reduce the incidence of jumping

  • ‘Blinds’ even stronger ewes leaving them looking under rather than over

  • Helps protect jumping dogs legs

  • Hinge together to allow them to ‘concertina’ as pulled in one run from the yard trailer

Made from top quality New Zealand Aluminium, extruded for strength and professionally welded.

3 Way Drafting

Built in 3-way drafting gates allow for easy sorting of sheep as they exit the system.

Spring loaded.

Reversible - switch the direction of the drafting gates to suit the direction the sheep are running.


HYDRAULIC LIFT AND LOWER

Quick and easy set-up.

The hand-pump hydraulic system allows the yard to be lifted and lowered in seconds.

To drop the yard, simply turn the tap to release the pressure.

Video shows 3.0m PortaYards

To raise, lock the tap and pump the conveniently placed handle for around 15-20 seconds to raise the yard to transport height.

Hydraulic Suspension

Quick and easy set-up.

The hand-pump hydraulic system allows the yard to be lifted and lowered in seconds.

To drop the yard, simply turn the tap to release the pressure.

To raise, lock the tap and pump the conveniently placed handle for around 15-20 seconds to raise the yard to transport height.

Video shows 3.0m Porta-Yards

Removable Wheels and Drawbar

Drawbar removes with one pin - simple slide in/out design for quick and easy removal/install.

Wheel assemblies can be removed by undoing the clip and sliding off the axle, because of the lift/lower system - the wheels do not have to be removed to use the yard.

Unit shown: 3.0m Porta-Yards

Unit show: 3.0m Porta-Yards

Rubber Floor

All Porta-Yards are now fitted with a rubber floor as standard. This aids flow of animals through the race.

  • Dark, matt finish

  • Quiet

  • Anti-slip

  • Long lasting

  • Quick and easy to clean

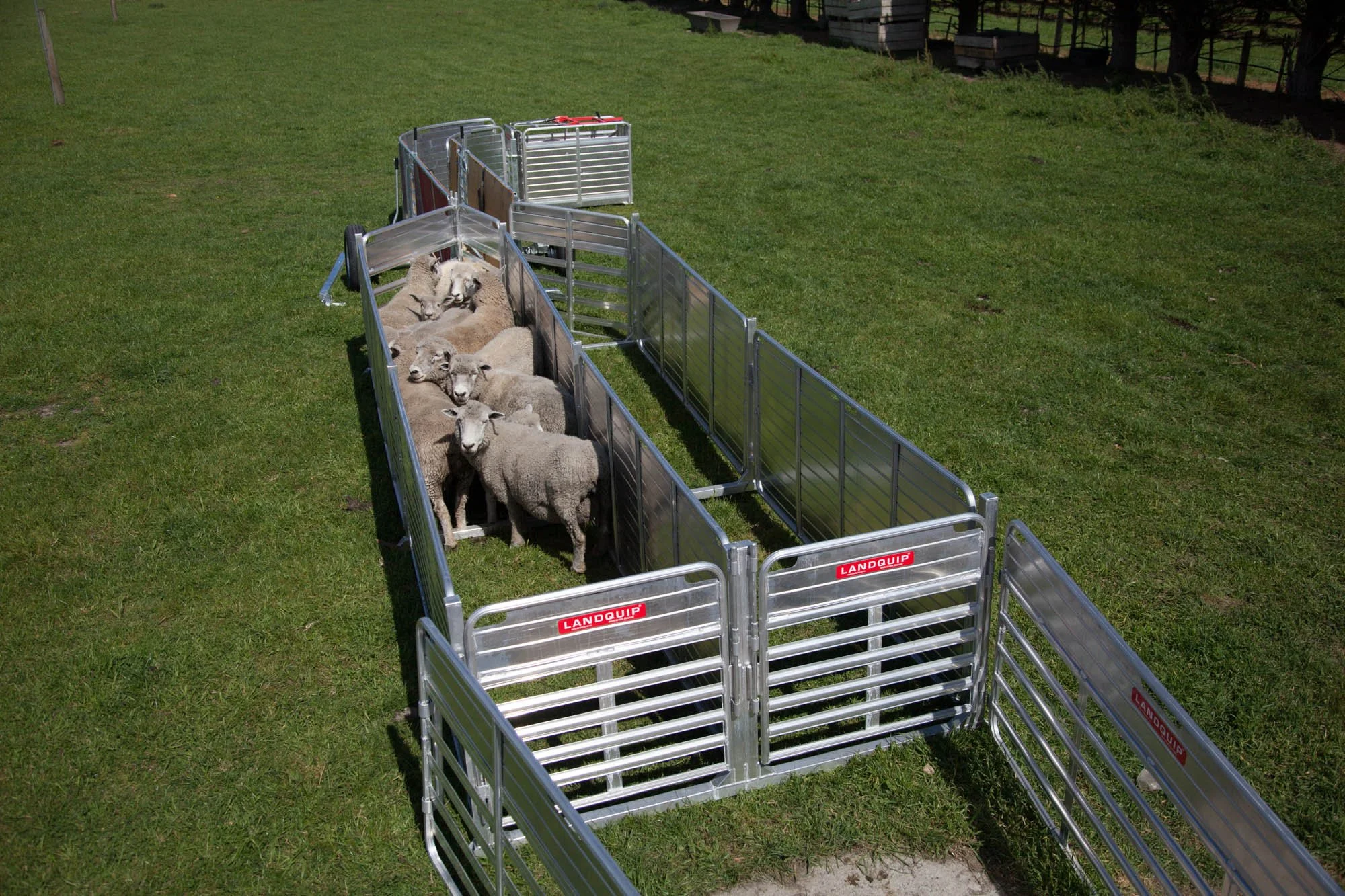

Dosing Race

Solid sheeted, aluminium panels to form a double or single dosing race.

900mm wide

L-Braces

Used to support panels when set up.

Simple design - the L-Brace slides along the panel, hooking over the top and bottom edge.

Install without unjoining panels or removing pins.
