Arrowlock 75 Series Manual Squeeze Cattle Crush
Sitting mid-range in the suite of Arrowquip manual squeeze cattle crushes, the Arrowlock 75 Series is the easiest way to upgrade your current manual squeeze cattle crush.
The Arrowlock 88 Series manual squeeze cattle crush sets the bar for manual cattle handling equipment by increasing the amount of pressure capability that can be applied to stock while minimising the physical effort.
10-year warranty
Vet cage and standard options
Arrowlock ratchet locking head gate
Internal width of 197mm to 800mm
Infinite friction lock squeeze
Barred slats in head gate uses light to draw cattle forward
Operate the head gate from any position alongside the crush
Curtain-style head gate with barred slats to draw cattle forward
Rolling back door with push/pull capability
Connected full side access gate to both sides of the animal
Split side door allows for full side top or bottom access
TB needle point door
Textured rubber floor with a lifetime guarantee
Mount brackets for load bars
Deluxe Vet - 7500LV (pictured)
Weight: 1,255kg
Dimensions: 1,727mm wide x 2,413mm high x 3,683mm long
Standard - 7500MR
Weight: 932kg
Dimensions: 1,600mm wide x 2,514mm high x 2,641mm long
Arrowlock Head Gate
The 75 Series cattle crush features the new Arrowlock Head Gate. Operating on a ratchet mechanism, more pressure can be applied to get a stronger hold on cattle.
The vertical barred design allows light through the front of the cattle crush, drawing cattle forward.
Handlers can operate the crush at any point alongside, allowing them to run the head gate and rear gate at the same time.
Rubber Floor
Arrowlock 75 Series cattle crushes are built with a textured rubber floor to improve quietness and reduce slipping.
Manufactured from virgin, tractor tyre grade rubber, the cattle crush floor carries a lifetime warranty.
Maximum Squeeze
Parallel squeeze from 800mm down to 197mm.
Adjustments are made seamlessly on an infinite friction lock system.
Parallel squeeze applies even pressure to the animal to hold it secure. The vet cage is fixed width on crushes with that option.
Full Side Access
The side of the crush consists of a top and bottom hinged gate that can be opened separately or pinned together to operate as one. This gives handler full side access to the animal.
The top gate features two integrated black gates that can be lifted out.
The front of the crush features a TB and vaccination needle point door with a simple drop down bar for full access.
Composite Rump Fingers and Rump Bar
The 75 Series cattle crush one row of composite rump fingers made of nylon for quiet operation. These rump fingers come with a lifetime guarantee.
A rubber-coated fibreglass rump bar is included.
Engineered for Quietness

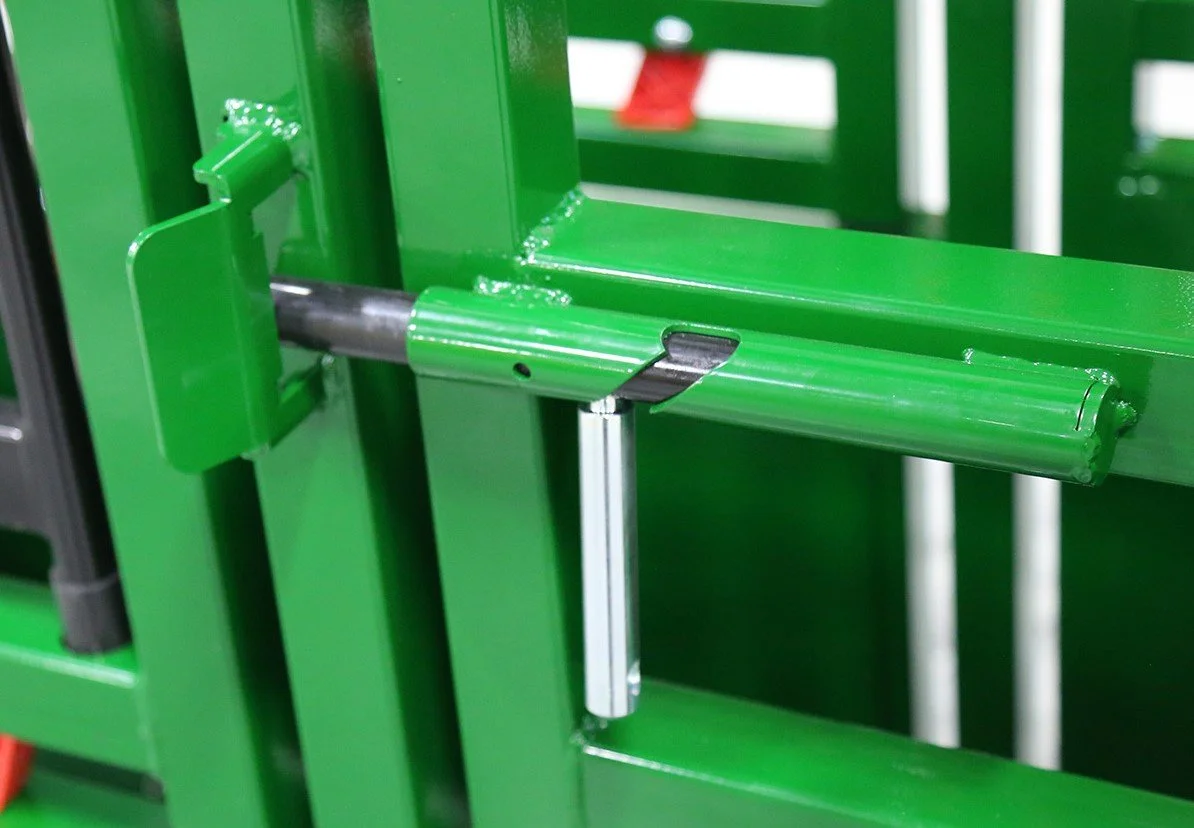

The rubber floor, nylon bushes on moving parts, nylon rump fingers and slam latches work together for a seriously quiet crush.
Optional Extras

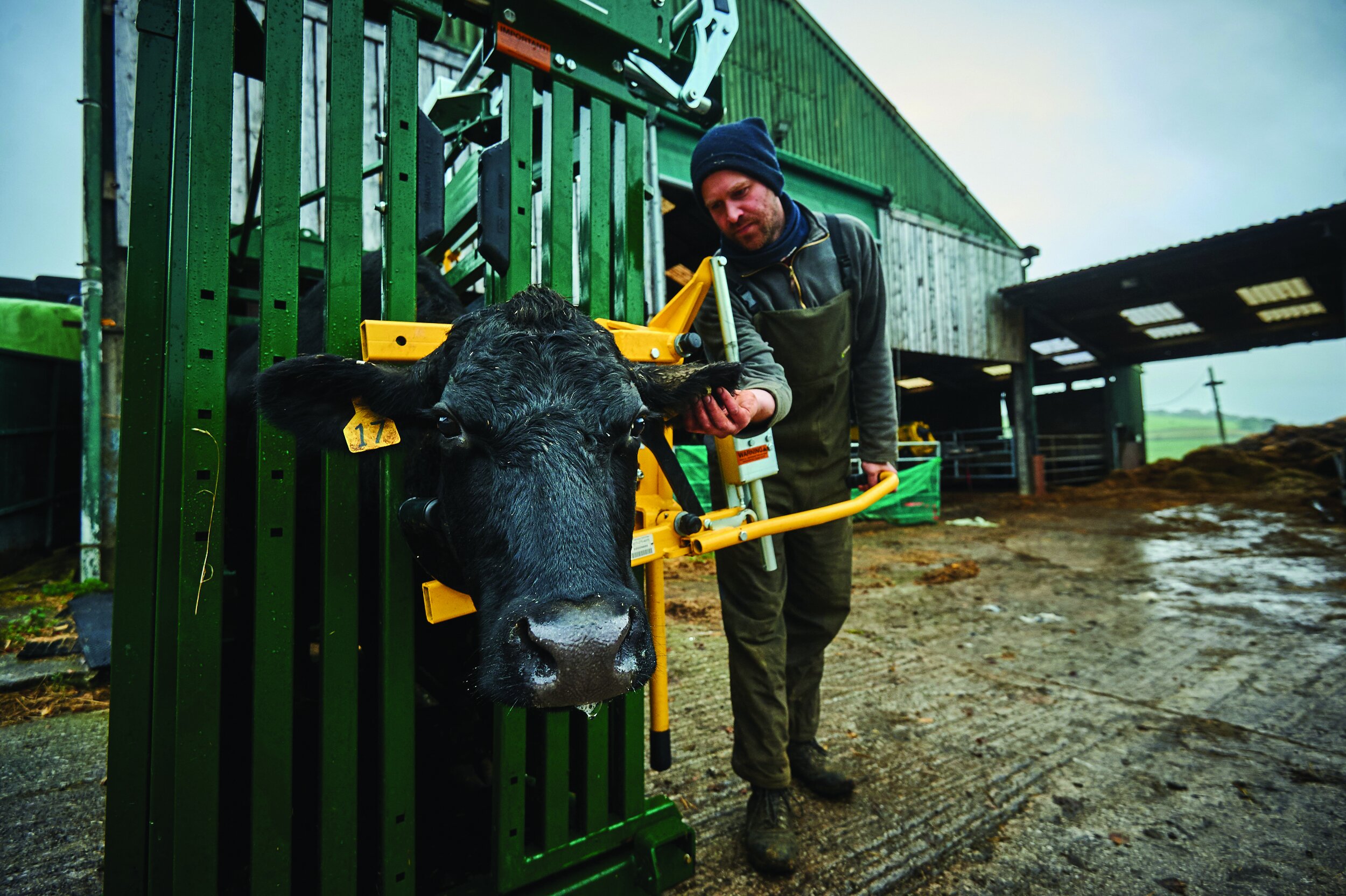

Q-Catch Cattle Head Scoop
The Third-Generation Q-Catch Cattle Head Scoop (patented) uses a scissor action motion to securely hold the head in place.
Simple push pull operation
Single lever control uses a dual friction lock with infinite adjustments
Adjustable height to fit any size animal
10-year warranty
Fits all crushes in the Q-Catch and Q-Power range
Sternum Bar
Simple, bolt-in attachment. A Sternum Bar helps to prevent cattle from going down inside the crush. The sheeted design helps to minimise foot traps and the whole thing can be removed quickly and easily with just two bolts.
Easy to remove
Sheeted to reduce foot-traps
Shaped to allow fertility tests on bulls when still in place
Weighing Equipment
All Arrowquip crushes are suitable for having load bars attached. We recommend TruTest HD5T load bars which are very robust and can be attached with minimal work.
Rated for up to 5 tons
Galvanised casing
Comes with bolts for fastening directly to concrete floor
Accurate
Robust
Requires a compatible load indicator - please see our Weighing and EID page to find out more.
