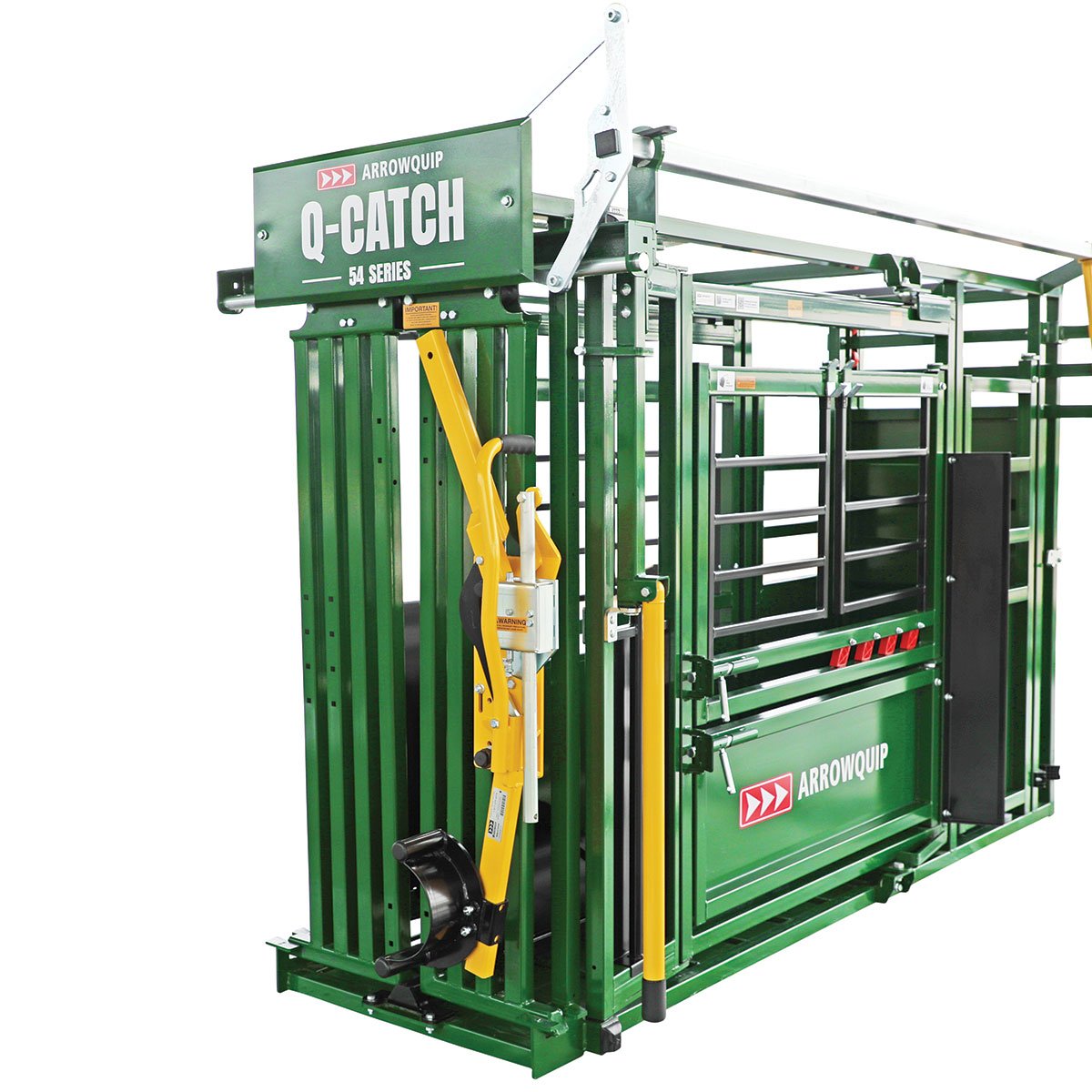

Q-Catch 54 Series Cattle Squeeze Crush
The Q-Catch 54 Series is the latest in the Q-Catch range from Arrowquip. With reduced features for a cost effective option for smaller farms, the 54 Series features the same Q-Catch head gate as it’s larger siblings.
Options include: head holder, sternum bar, rump bar, loadbar mounting brackets.
The Q-Catch 54 Series comes as standard with a 5-year warranty plus a lifetime guarantee on the head gate lock, squeeze locks and rump fingers.

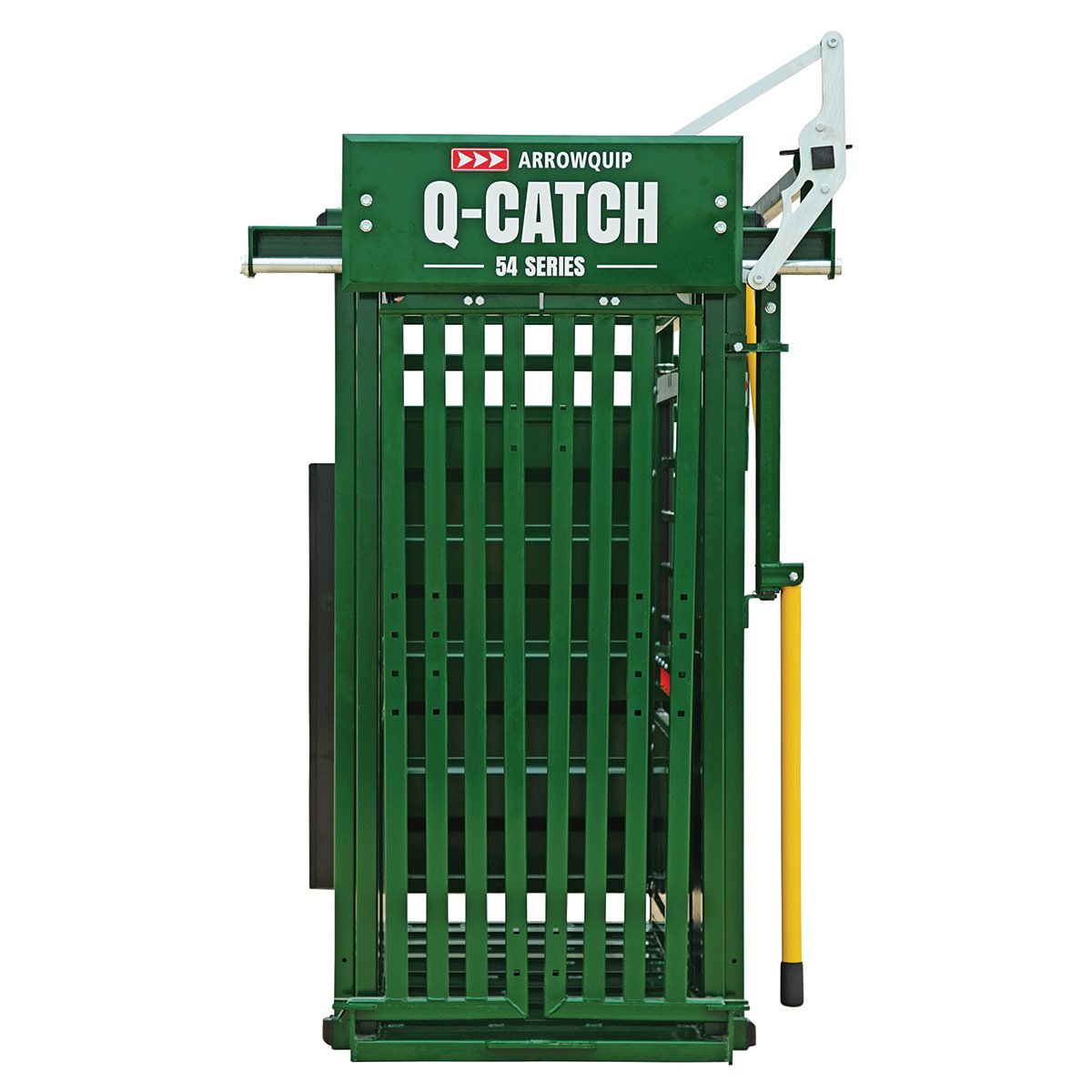

Q-Catch Head Gate
Featuring the latest style Q-Catch head gate with vertical bar design allowing more light into the front of the crush. Draw animals forward without force.
With the infinite-lock headgate design the headgate is always locked and cannot be pushed open from the inside. This means we do not need a crash gate on the front as a precaution, so long a the headgate isn’t open wider than the animal it cannot escape.
With the sliding operating handle the headgate can be operated anywhere along the side of the crush.
Q-Catch head gate locks covered by a lifetime guarantee.
Infinite Lock Squeeze
Parallel squeeze from 750mm down to 197mm to handle all sizes of cattle
Infinite friction lock mechanism for seamless operation
Applying pressure to the sides of the animal helps to reduce stress and lessens the chance of injury and bruising.
Sliding rear door is standard on all 54 Series Crushes with optional off-side operating handle.

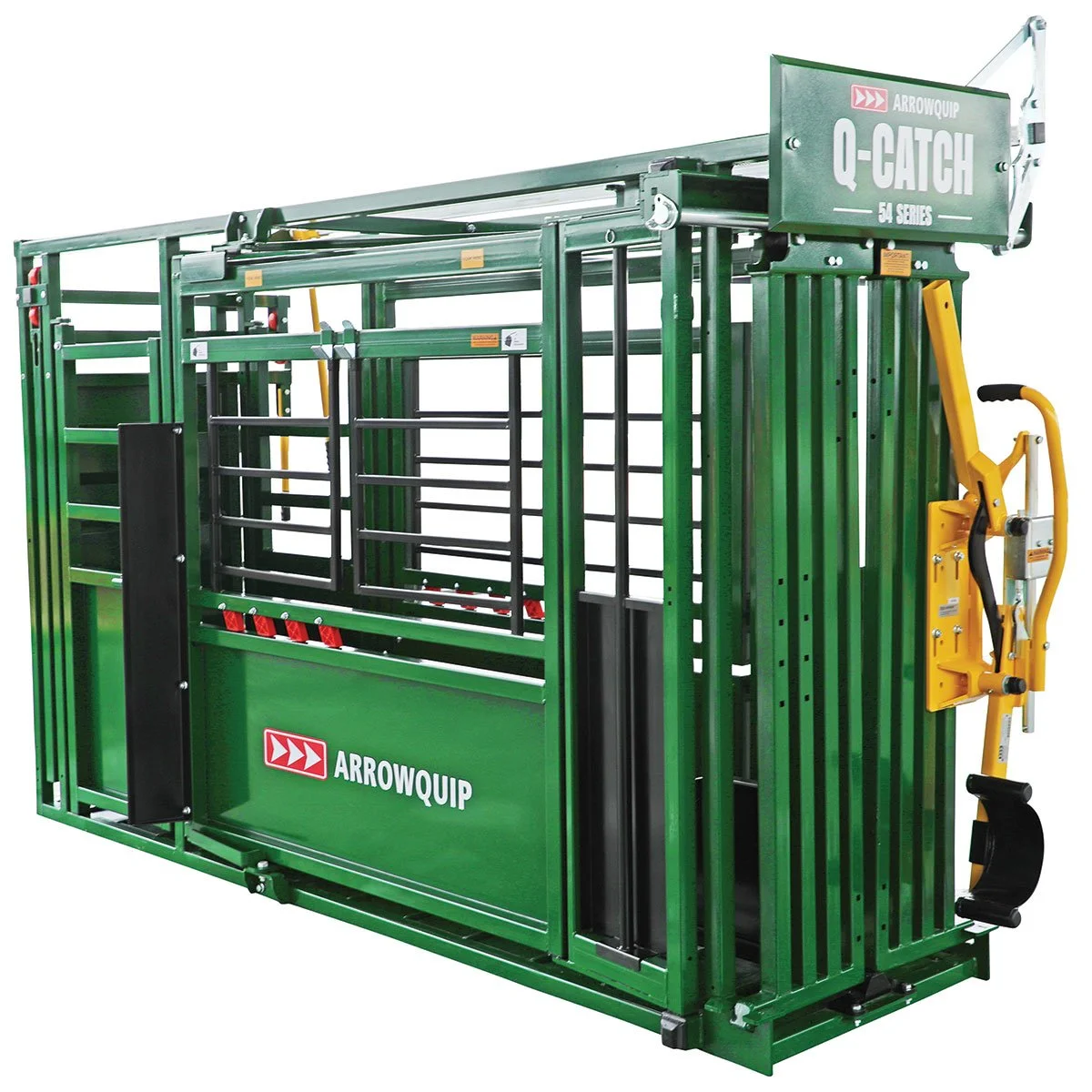

Side Access - Side 1
Full access to the operating side with horizontal opening top and bottom gates.
Openable and removable ‘branding gates’.
Removable needle panel for improved TB testing access
Side Access - Side 2
Reduced access on the none operating side (can be ordered left or right handed).
Removable needle door
Openable and removeable branding doors (black, railed doors)
No full side doors/emergency exit
Composite Rump Fingers
All 54 Series crushes come as standard with 4 purpose made composite nylon for quiet operation.
Lifetime guarantee as standard on all Arrowquip rump fingers.
Optional rump bar
Steel Floor
54 Series Crushes are standard with a steel floor. Folded at the edges for strength with box section bearers underneath.
Steel treads at intervals along the length of the crush for added traction.
Optional load bar/bolt down brackets.
Optional Sternum Bar to reduce the likelihood of cattle ‘going down’ in the crush.
Vet Cage Options
Q-Catch 54 Series are available with or without vet cages.
Vet access doors at the rear of the crush allow for a safer working area when carrying out tasks such as preg. checking.
Sliding doors are standard on crushes with or without vet cage.
Optional Extras
Q-Catch Cattle Head Scoop
The Third-Generation Q-Catch Cattle Head Scoop (patented) uses a scissor action motion to securely hold the head in place.
Simple push pull operation
Single lever control uses a dual friction lock with infinite adjustments
Adjustable height to fit any size animal
10-year warranty
Fits all crushes in the Q-Catch and Q-Power range
Sternum Bar
Simple, bolt-in attachment. A Sternum Bar helps to prevent cattle from going down inside the crush. The sheeted design helps to minimise foot traps and the whole thing can be removed quickly and easily with just two bolts.
Easy to remove
Sheeted to reduce foot-traps
Shaped to allow fertility tests on bulls when still in place
Suitable for all crushes and portable units in the Q-Catch 87 and 74 and Q-Power 104 and 107 range.
Weighing Equipment
All Arrowquip crushes are suitable for having load bars attached. We recommend TruTest HD5T load bars which are very robust and can be attached with minimal work.
Rated for up to 5 tons
Galvanised casing
Comes with bolts for fastening directly to concrete floor
Accurate
Robust
Requires a compatible load indicator - please see our Weighing and EID page to find out more.
