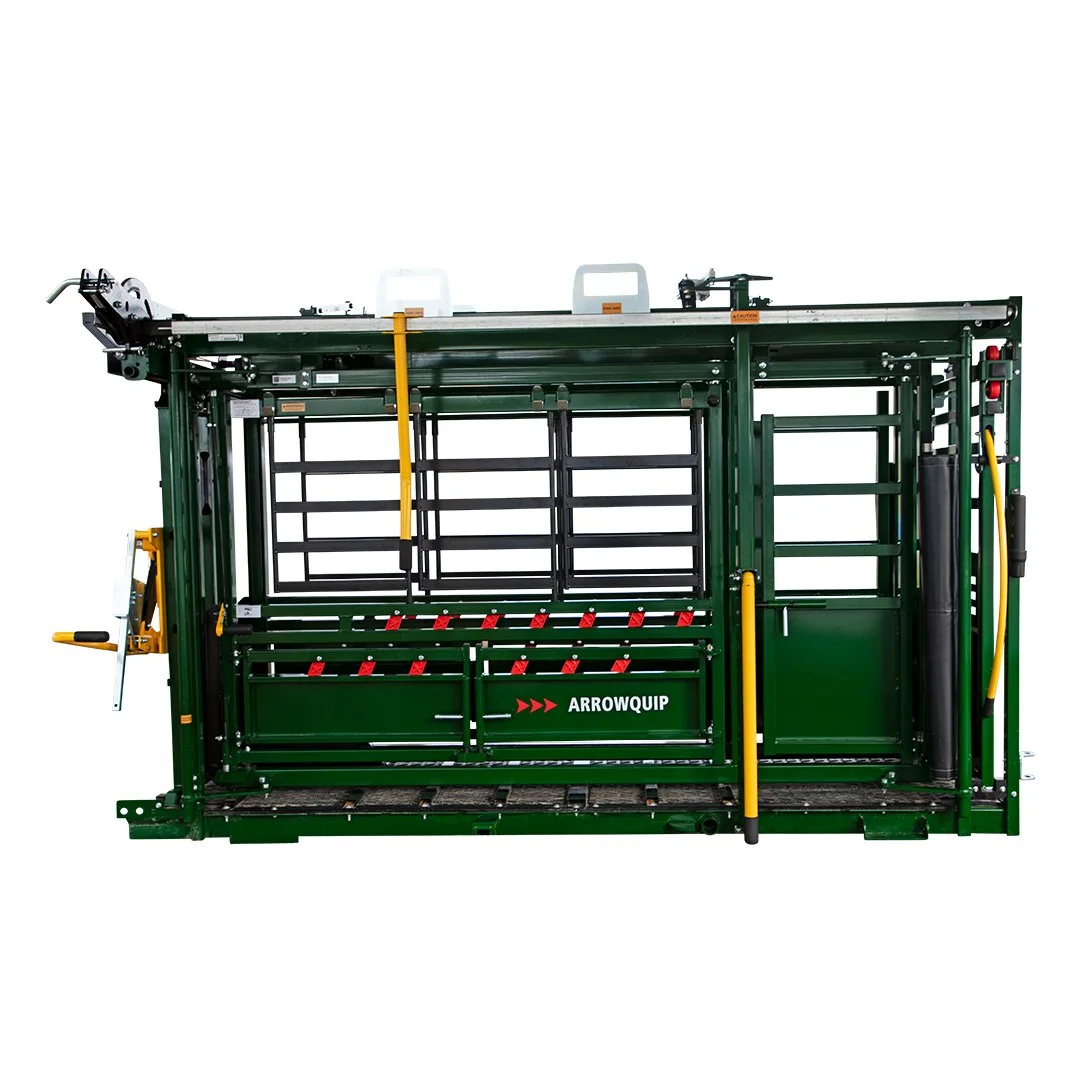

Arrowlock 88 Series Manual Squeeze Cattle Crush
Need a manual crush that will hold big bulls and small calves? Then this is the cattle crush for you.
The Arrowlock 88 Series manual squeeze cattle crush sets the bar for manual cattle handling equipment by increasing the amount of pressure capability that can be applied to stock while minimising the physical effort.
Market-leading 15-year warranty
Ratchet locking head gate with three different settings for different-sized stock
Curtain-style head gate with barred slats to draw cattle forward
Ability to operate the head gate at any point alongside the crush
Internal width of 197mm to 800mm
Rolling back door with push/pull capability
Removable split-bottom access gates
Removable split-top access gates
Full side access gate to both sides of the animal
Needle point access
Textured rubber floor with metal traction bars and a lifetime guarantee
Mount brackets for load bars
Vet cage as standard
Weight: 1,255kg
Dimensions: 1,727mm wide x 2,413mm high x 3,683mm long
Arrowlock Head Gate
A step ahead of the flagship Q-Catch, the Arrowlock Head Gate operates on an innovative ratchet-style locking mechanism to provide a robust grip to put more force on the animal and keep it secured in place with little effort.
With a redesigned locking mechanism and three head gate settings, you’re guaranteed maximum hold every time.
Working with animal behaviour, the vertical bar design allows more light into the front of the crush, drawing animals forward without force.
The head gate handle is attached to a sliding bar, optimising efficiency by allowing the crush to be operated anywhere alongside. This means the operator can run the headgate and rear gate in tandem for a faster workflow.
Engineered For Strength
A 3”x3” base frame and 6”x2” top beams give the Arrowlock 88 Series manual squeeze cattle crush a heavy-duty mainframe.
Fork slots above the crush make moving easier.
Every 88 Series cattle crush is equipped to accommodate a wheel kit, enabling you to attach a drawbar and wheels, along with a jacking kit. This feature facilitates hassle-free transportation of your crush between different sites without the need for a forklift.

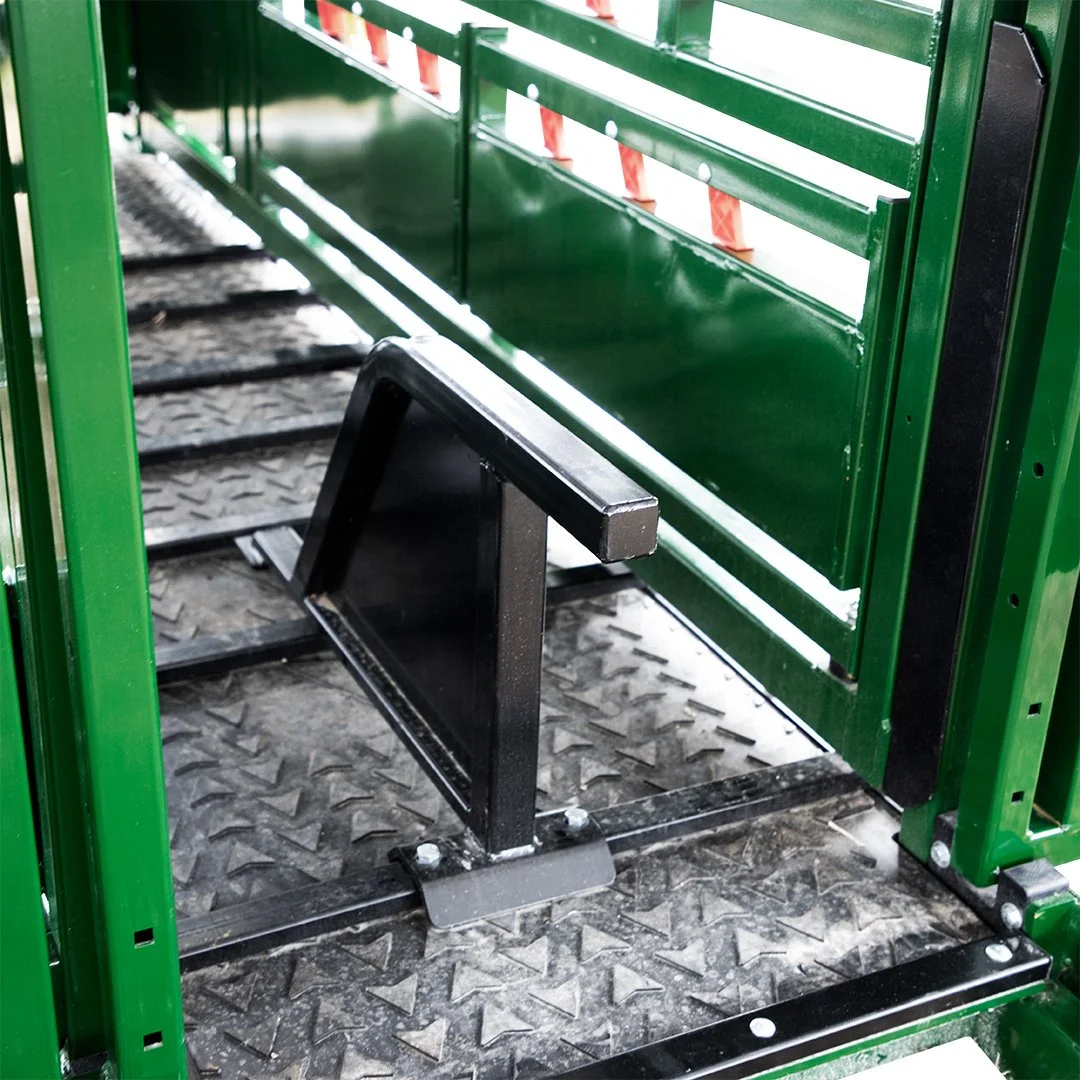

Rubber Floor
Arrowlock 88 Series manual squeeze cattle crush is fitted as standard with a textured rubber floor that features metal traction bars.
Virgin, tractor tyre grade rubber provides a quiet and slip-resistant floor.
The rubber floor features a lifetime guarantee.
A sternum bar can be installed to keep cattle from going down in the crush. This can easily be removed for working small calves.

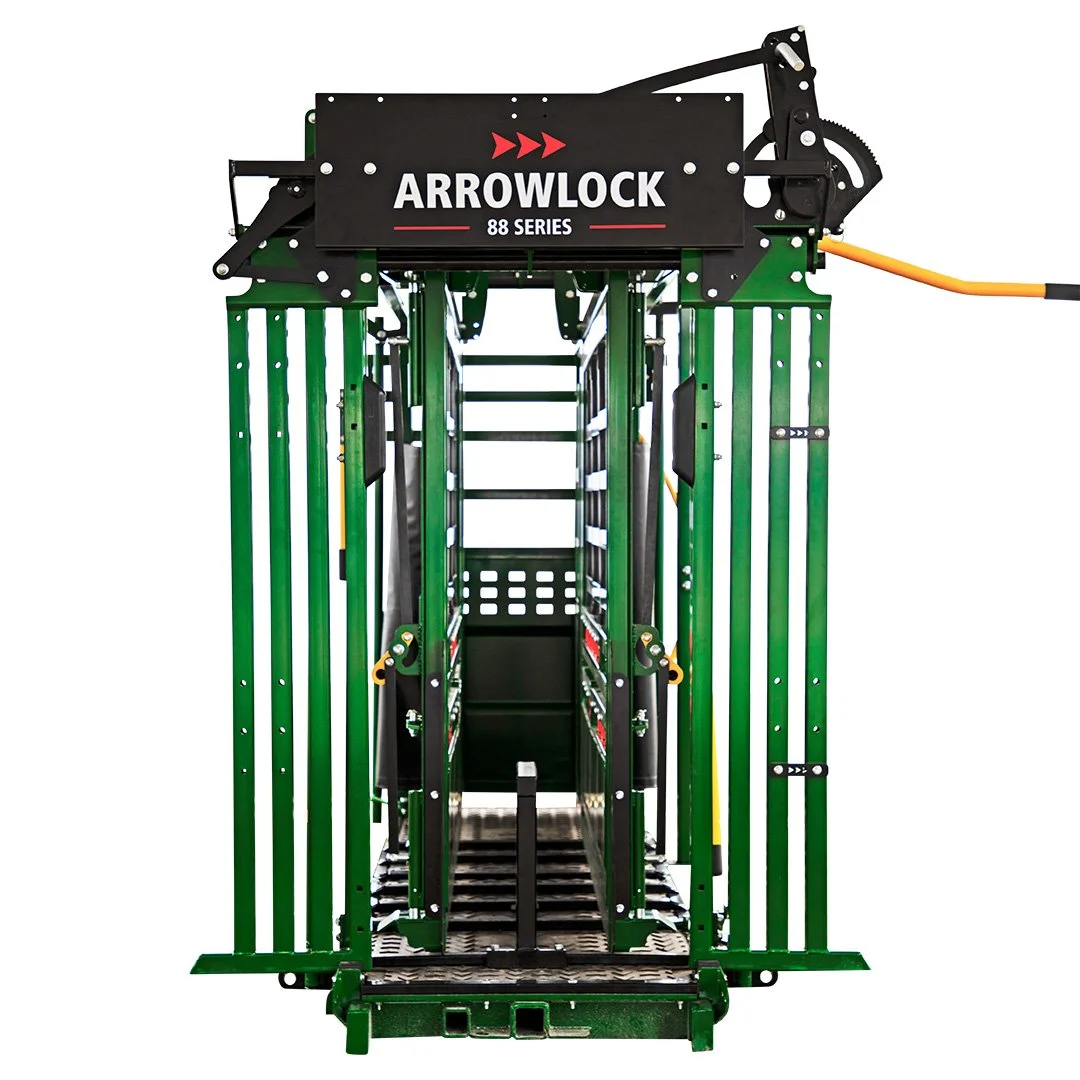

Maximum Squeeze
Parallel squeeze from 800mm down to 197mm.
Working on an infinite friction lock, the width stays where the operator sets it seamlessly.
A complete new squeeze design allows far greater squeeze pressure to be applied (up to 3x a Q-Catch). The revolutionary ‘suspended’ side panels create a highly efficient and smooth action with torsion bars applying equal pressure to all four corners of each side. With zero ‘forward-aft’ or ‘up-down’ movement of the side panels, all of the users effort is put into restraining the animal and not lifting or moving the sides of the crush.
Full length, parallel squeeze including vet cage evenly applies pressure to the sides of the animal to reduce stress and injury by holding it secure.
The sliding rear door with an offside operating handle can be set to pull out or push in to best suit the operator’s preference.

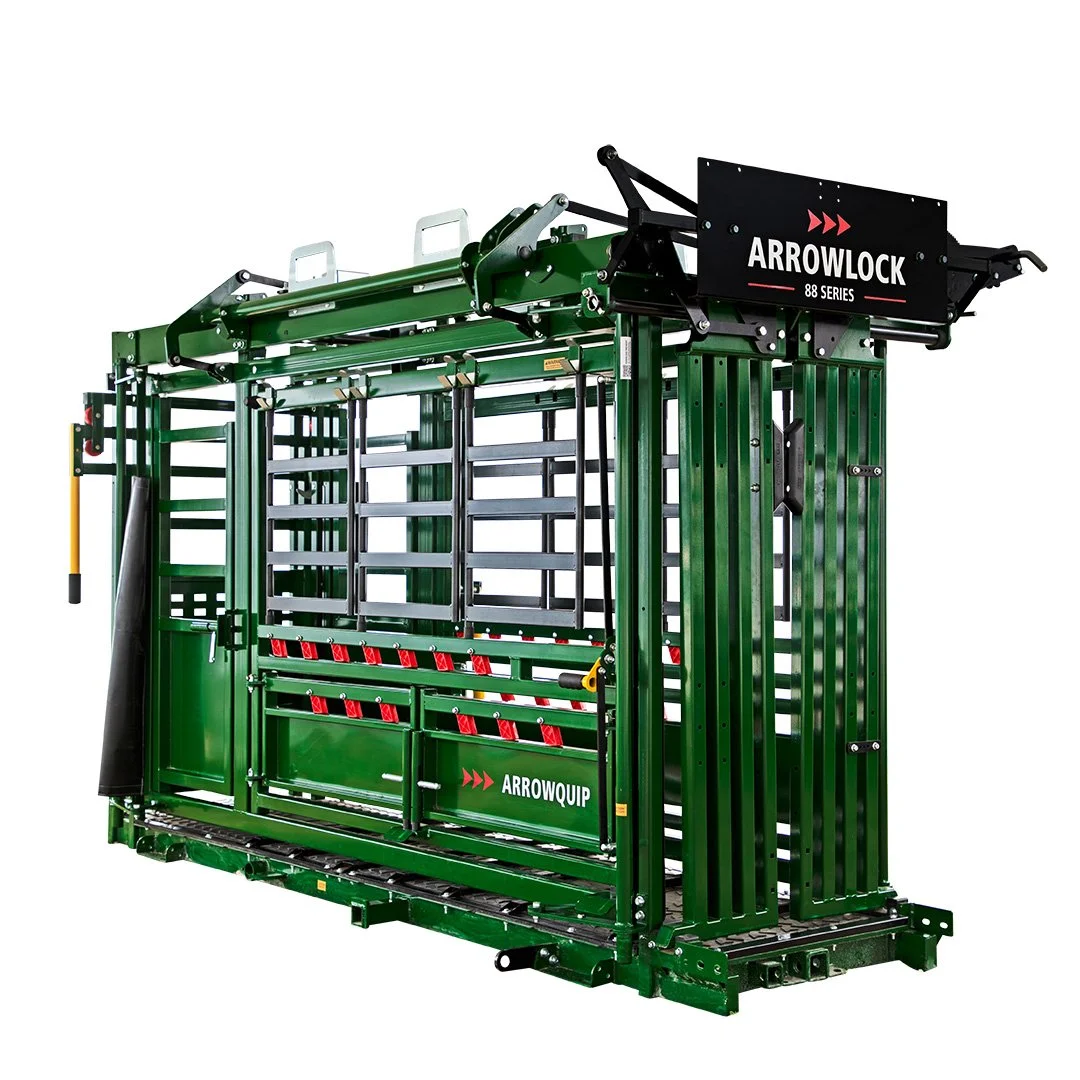

Full Side Access
Sides of the crush open completely on both sides as one fixed door to give operators full side access to the animal with one easy lift of the handle.
The bottom section of the door is split into two individual doors, allowing for full or split access to the animal’s feet and belly.
Vet access doors have a full height door that opens in or out of the cattle crush.
Removable black gates allow for full access to the top of the animal. A section of open space sits between the front frame and the first black gates, allowing for safe and easy neck access without the need to open a gate.
Composite Rump Fingers and Rump Bar
All 87 Series crushes come as standard with 2 full rows of composite rump fingers. These are purpose made composite nylon for quiet operation.
Two rows allows for a greater variety of cattle sizes and allows for either the top or bottom doors to be open while the rump bar is in place.
Lifetime guarantee as standard on all Arrowquip rump fingers.
87 Series come standard with rubber coated fibre glass rump bar.
Extra Quiet
The high quality, engineered design of an 88 Series cattle crush provides an incredibly quiet, stress-free working environment.
This includes poly-coated slam latches, nylon bushes, nylon rump fingers and a textured, rubber floor.
Optional Extras
Q-Catch Cattle Head Scoop
The Third-Generation Q-Catch Cattle Head Scoop (patented) uses a scissor action motion to securely hold the head in place.
Simple push pull operation
Single lever control uses a dual friction lock with infinite adjustments
Adjustable height to fit any size animal
10-year warranty
Fits all crushes in the Q-Catch and Q-Power range
Sternum Bar
Simple, bolt-in attachment. A Sternum Bar helps to prevent cattle from going down inside the crush. The sheeted design helps to minimise foot traps and the whole thing can be removed quickly and easily with just two bolts.
Easy to remove
Sheeted to reduce foot-traps
Shaped to allow fertility tests on bulls when still in place
Weighing Equipment
All Arrowquip crushes are suitable for having load bars attached. We recommend TruTest HD5T load bars which are very robust and can be attached with minimal work.
Rated for up to 5 tons
Galvanised casing
Comes with bolts for fastening directly to concrete floor
Accurate
Robust
Requires a compatible load indicator - please see our Weighing and EID page to find out more.
