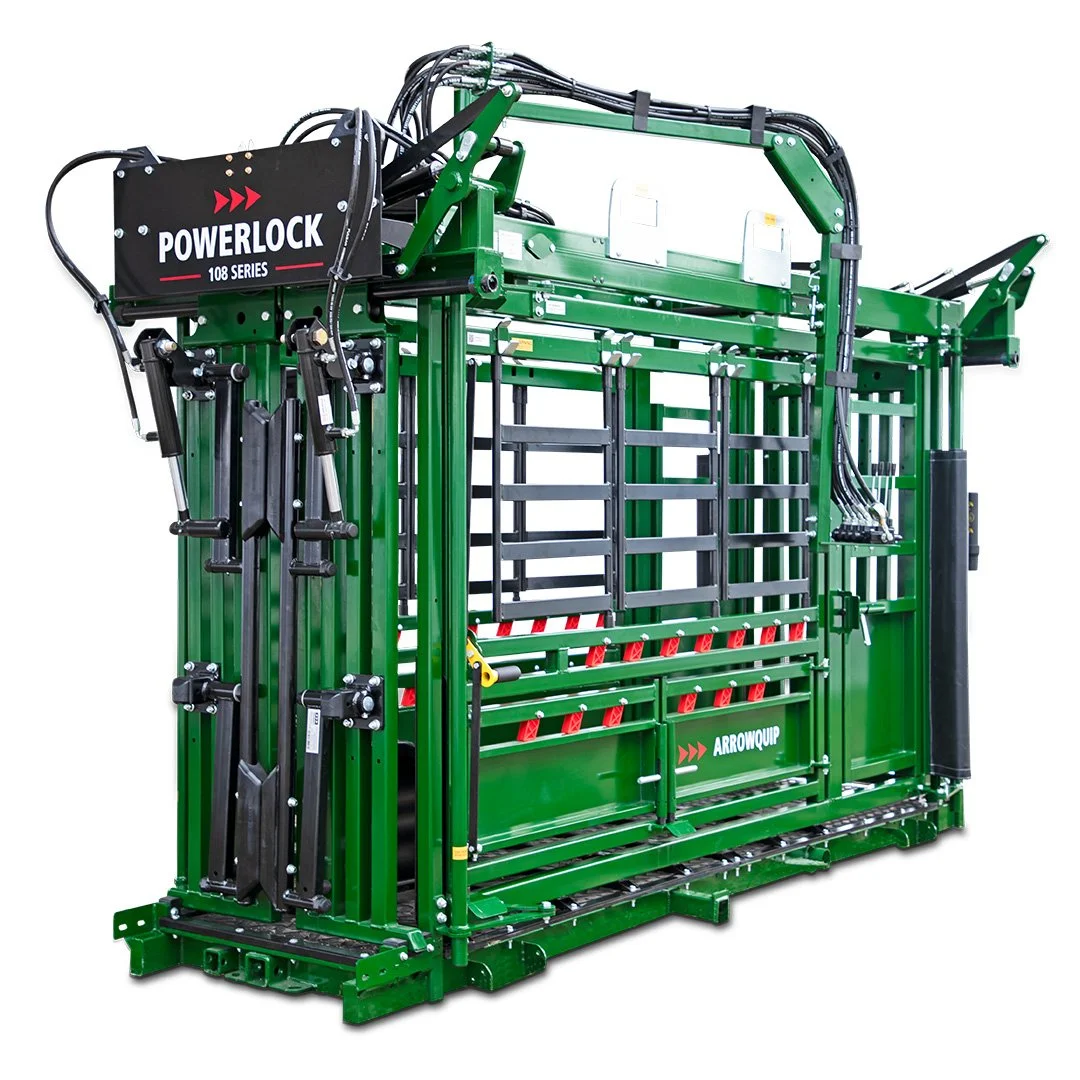

Powerlock 108 Series hydraulic squeeze crush
Weight: 1,255kg
Dimensions: 1,676 – 3,378mm wide x 2,590mm high x 3,683mm long
Sitting at the top of its range, the Powerlock 108 Series hydraulic squeeze cattle crush from Arrowquip combines high performance with exceptional build quality. The Powerlock 108 Series hydraulic cattle crush has the same body frame and access points as the Arrowlock manual squeeze crush.
Market-leading 15-year warranty
Pivot swing arm with controls to operate crush on either side
Fast-responding hydraulics operated on a single-phase power pack
Curtain-style head gate and rear gate that open 800mm top to bottom
Barred slats in the head gate allow light to draw cattle forward
Internal width of 197mm to 800mm
Removable split-bottom access gates
Removable split-top access gates
Full side access gate to both sides of the animal
TB and needle point access
Lifetime guarantee on textured rubber floor with metal traction bars
Load bar brackets
Vet cage as standard
Latest 3E Head Gate Design
Arrowquip’s 3E Head Gate design works with animal behaviour to draw cattle towards the front of the crush without the use of force. The slatted vertical bar design on both the head gate and rear gate allows light through to keep cattle moving forward.
Built For Strength
The Powerlock 108 Series hydraulic cattle crush is built on a 3”x3” base frame with 6”x2” top beams for unbeatable strength.
The top of the frame is fit with fork slots for easy transport.
Heavy-Duty Hydraulics
Hydraulic operation for increased force and ease of use
Applying pressure to the sides of the animal helps to reduce stress and lessens the chance of injury and bruising.
With a 107 Series the vet cage (standard) also squeezes with the rest of the crush.
Rubber Floor
A textured rubber floor with metal traction bars gives a slip-resistant base while also mitigating noise.
Made from virgin, tractor tyre grade rubber, Arrowquip’s cattle crush floor has a lifetime guarantee.
For farms with cattle that try to drop to their knees when being restrained in a cattle crush, a sternum bar can be installed. This can quickly be removed to work smaller calves.
Hydraulic Control Swing Arm
Each of the 108 Series crushes is equipped with controls affixed to a swinging arm.
All functionalities, including head gate, rear gate, squeeze, and optional neck extenders, are consolidated into a single bank of levers for simplified operation.
The swing arm spans from one side of the crush to the other, optimizing usability.
Maximum Squeeze
Full length parallel squeeze from 800mm down to 197mm.
This operates smoothly and effortlessly on hydraulics.
Full Side Access
The crush features fully opening sides on both ends, operated by one fixed door for convenient access to the animal with a simple lift of the handle.
Additionally, the bottom section of the door is divided into two parts, providing options for full or split access to the animal's feet and belly.
The vet cage doors are full height to give operators greater clearance, and also swing inward and outward.
Removable black gates enable complete access to the top of the animal, with a space between the front frame and the first black gates allowing neck access without requiring a gate to be opened.
Composite Rump Fingers and Rump Bar
Included as a standard, the Powerlock 108 Series hydraulic cattle crush has two full rows of composite rump fingers, designed from nylon to ensure silent operation.
The rubber-coated fiberglass rump bar offers robust support for full-sized cattle yet remains lightweight for effortless handling for operators.
With two rows of rump fingers, the crush accommodates various cattle sizes and permits either the top or bottom doors to stay open while the rump bar is engaged.
Lifetime guarantee on rump fingers.
Engineered for Quietness
Poly-coated slam latches, nylon bushes, nylon rump fingers and a textured rubber floor work together for a quiet cattle crush.
Hydraulic Neck Extenders
Customers have the option to equip Powerlock 108 Series crushes with hydraulic neck extenders.
These extenders, affixed to the headgate, are controlled via the control arm and facilitate gentle forward movement of the animal's head.
This feature simplifies tasks like injections, tagging, and TB testing, enhancing both safety and precision.
Optional Extras
Q-Catch Cattle Head Scoop
The Third-Generation Q-Catch Cattle Head Scoop (patented) uses a scissor action motion to securely hold the head in place.
Fits all crushes in the Q-Catch and Q-Power Series range
Simple push pull operation
Single lever control uses a dual friction lock with infinite adjustments
Adjustable height to fit any size animal
10 year warranty
Sternum Bar
Simple, bolt-in attachment. A Sternum Bar helps to prevent cattle from going down inside the crush. The sheeted design helps to minimise foot traps and the whole thing can be removed quickly and easily with just two bolts.
Easy to remove
Sheeted to reduce foot-traps
Shaped to allow fertility tests on bulls when still in place
Suitable for all crushes and portable units in the Q-Catch and Q-Power range
Weighing Equipment
All Arrowquip crushes are suitable for having load bars attached. We recommend TruTest HD5T load bars which are very robust and can be attached with minimal work.
Rated for up to 5 tons
Galvanised casing
Comes with bolts for fastening directly to concrete floor
Accurate
Robust
Requires a compatible load indicator - please see our Weighing and EID page to find out more.
