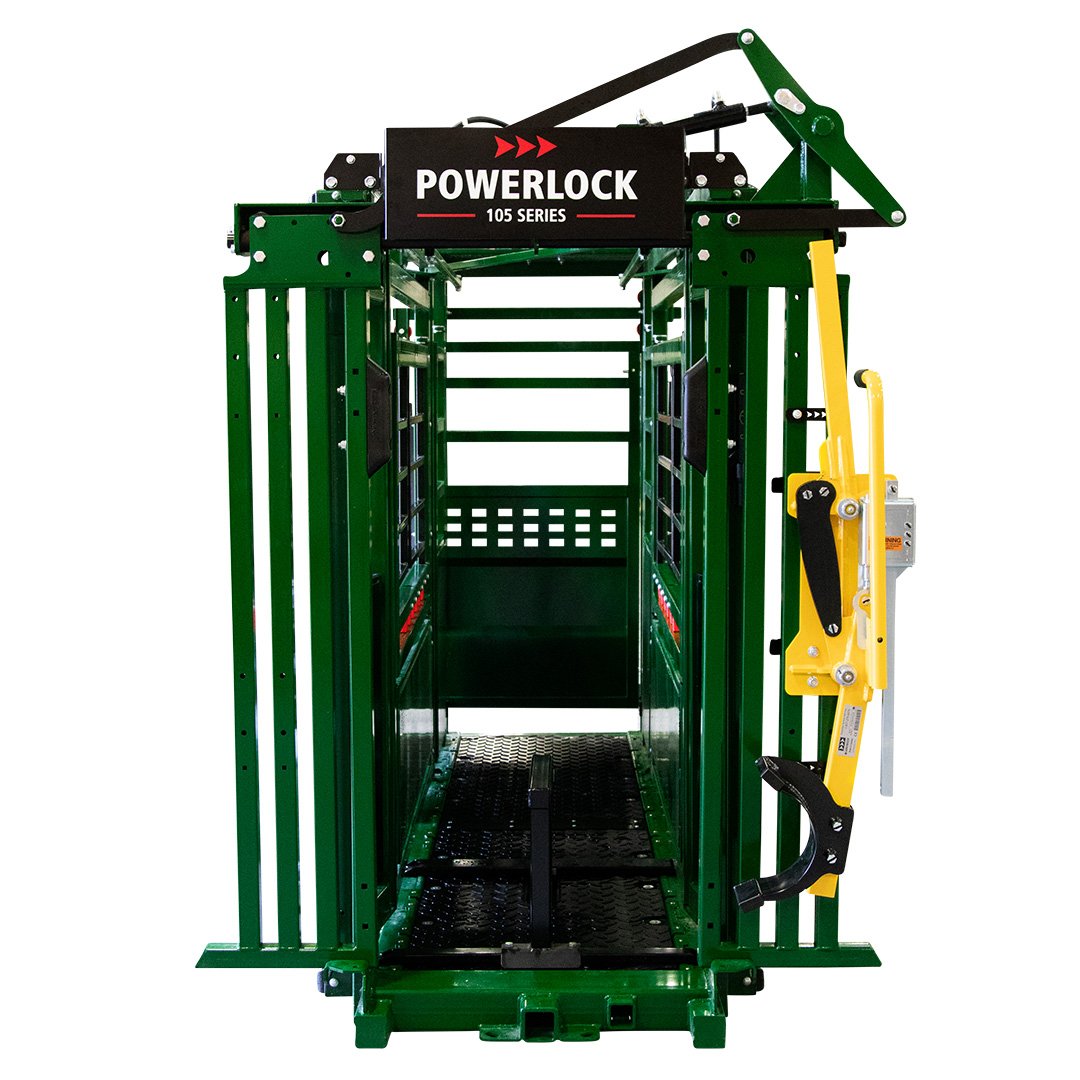

Powerlock 105 Series hydraulic squeeze crush
Weight: 938kg
Dimensions: 1,625mm wide x 2,590mm high x 3,378mm long
The Powerlock 105 Series hydraulic squeeze cattle crush is the easiest way to take advantage of the efficiency benefits of a hydraulic Arrowquip cattle crush. This cattle crush is built on the same frame as the Arrowlock 75 Series.
10-year warranty
Hydraulic controls mounted on the side top frame
Vet cage as standard
3E Head Gate with barred slats to draw cattle forward
Rolling race gate
Internal width of 197mm to 800mm
Infinite friction lock squeeze
Single phase power pack that is top-mounted
Full side access gate on both sides
Split side gates for separate top and bottom access
TB testing and needle point door
Textured rubber floor with a lifetime guarantee
Mount brackets for load bars
3E Powerlock Head Gate
The curtain-style head gate is hydraulically operated. The 3E Powerlock Head Gate features vertical bars to work with animal behaviour by allowing light through to draw cattle forward.
Single Phase Hydraulic Power Pack
A 230V, single phase power pack is provided as standard and mounts to the top of the crush.
A large hydraulic reservoir keeps oil cool during long working hours.
Rubber Floor
The textured rubber floor made from tractor tyre grade rubber features a lifetime warranty from Arrowquip.
The floor works to dampen noise and provide traction for stock.
Maximum Squeeze
The hydraulic squeeze ranges from 197mm to 800mm in width to accommodate all sizes of cattle.
Squeeze is parallel to provide equal pressure to the sides of the anima.
The vet cage is fixed width.
Full side access
Handlers have full access to the side of the animal with two side gates that can be connected as one or split for separate top and bottom access.
Two separate black gates are integrated into the top gate for quick access for clipping and health procedures. These gates can be lifted out.
At the front of the crush, there is a door specifically designed for TB testing and vaccination, equipped with a drop-down bar for complete access.
Composite Rump Fingers and Rump Bar
The 105 Series hydraulic cattle crush features one row of rump fingers made from nylon. These composite rump fingers reduce noise without compromising strength and carry a lifetime guarantee.
A rubber-coated fibreglass rump bar is included.
Optional Extras
Q-Catch Cattle Head Scoop
The Third-Generation Q-Catch Cattle Head Scoop (patented) uses a scissor action motion to securely hold the head in place.
Fits all crushes in the Q-Catch and Q-Power Series range
Simple push pull operation
Single lever control uses a dual friction lock with infinite adjustments
Adjustable height to fit any size animal
10 year warranty
Sternum Bar
Simple, bolt-in attachment. A Sternum Bar helps to prevent cattle from going down inside the crush. The sheeted design helps to minimise foot traps and the whole thing can be removed quickly and easily with just two bolts.
Easy to remove
Sheeted to reduce foot-traps
Shaped to allow fertility tests on bulls when still in place
Suitable for all crushes and portable units in the Q-Catch and Q-Power range
Weighing Equipment
All Arrowquip crushes are suitable for having load bars attached. We recommend TruTest HD5T load bars which are very robust and can be attached with minimal work.
Rated for up to 5 tons
Galvanised casing
Comes with bolts for fastening directly to concrete floor
Accurate
Robust
Requires a compatible load indicator - please see our Weighing and EID page to find out more.
